Analog Car Camera

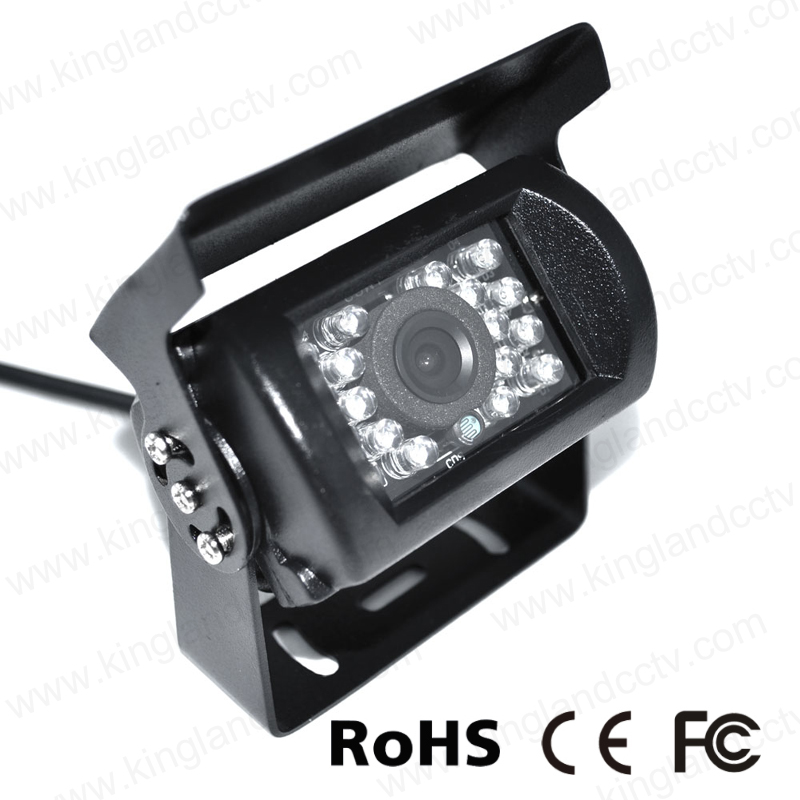

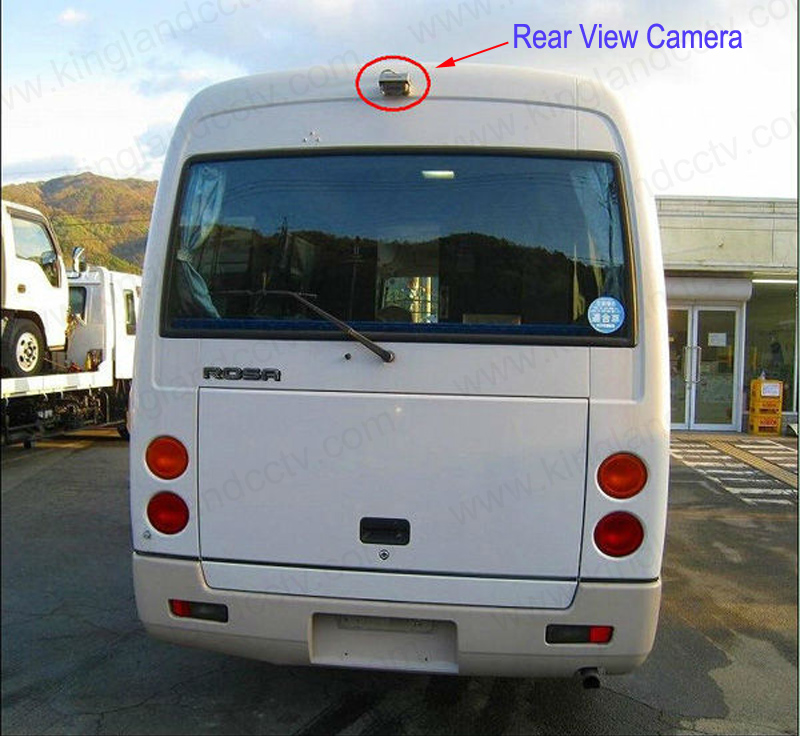

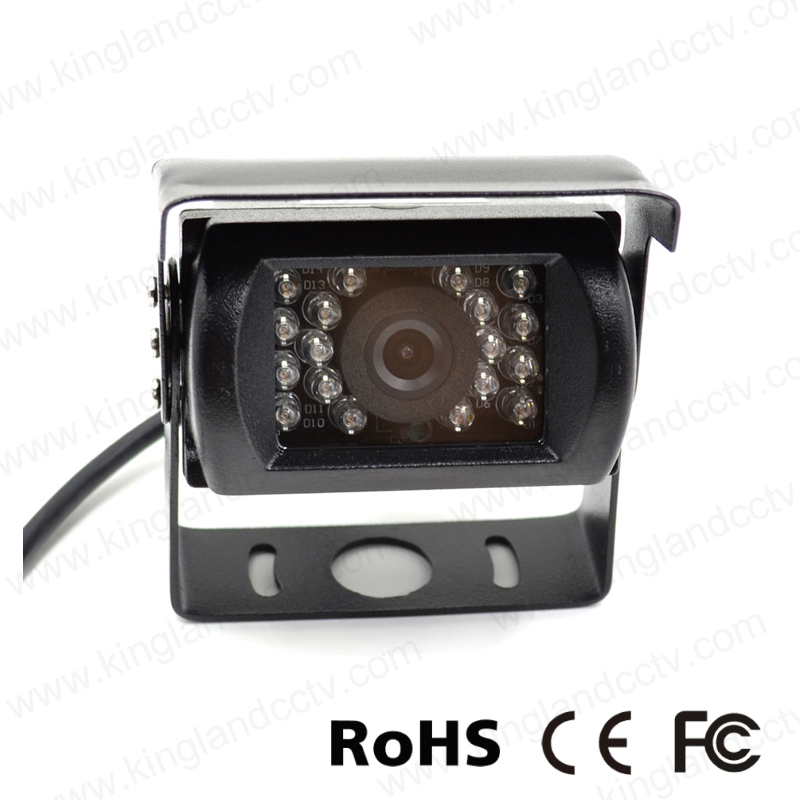

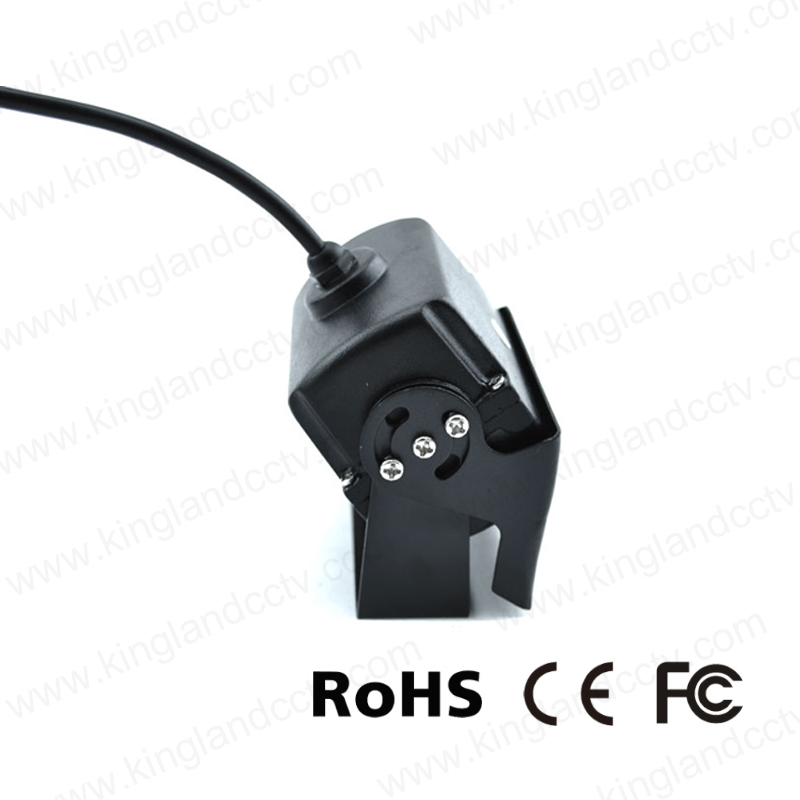

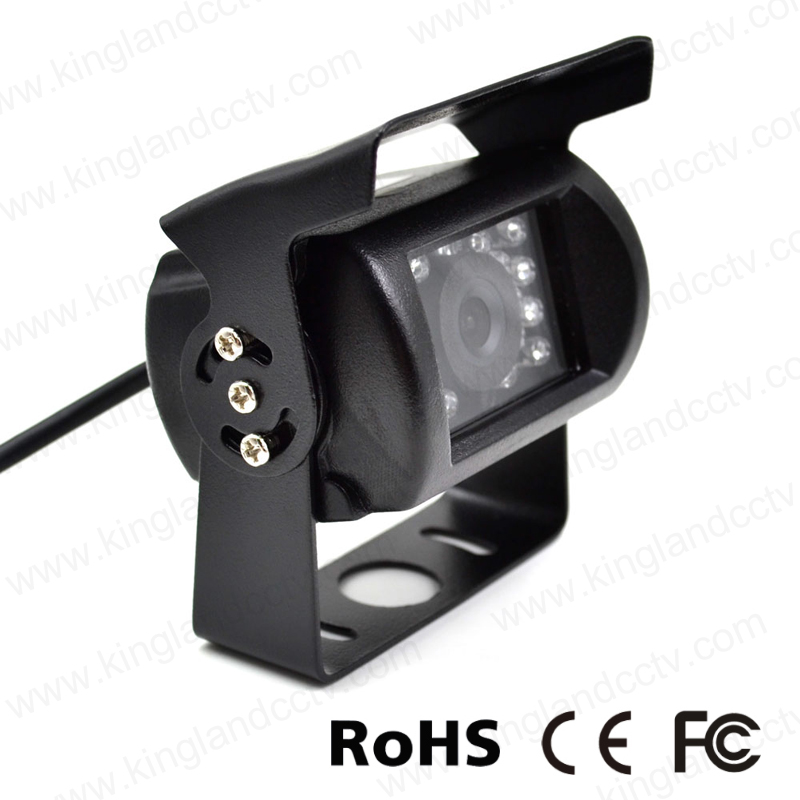

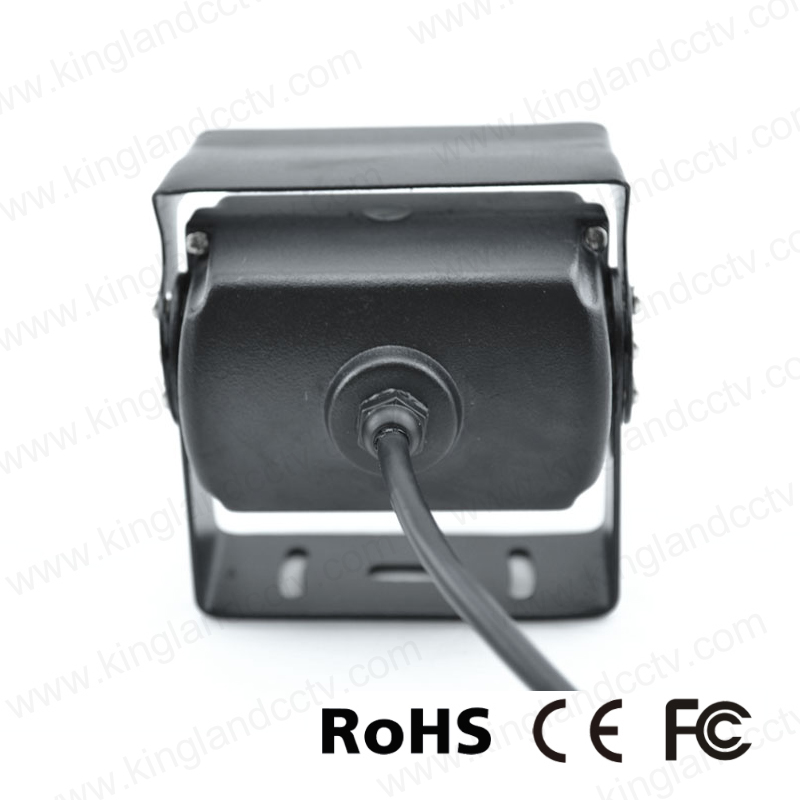

1/3" Sony CCD 700tvl Car Rear View Camera

1) 1/3" Sony CCD 700TVL High-definition Video Quality
2) 120 degree wide viewing angle
3) IP67 Waterproof and Weatherproof
4) 18PCS Φ5mm IR LED, provide good vision at night
Product description: 1/3" Sony CCD 700tvl Car Rear View Camera
INQUIRY

1/3" Sony CCD 700tvl Car Rear View Camera

Model NO.	KL-C8109	Definition	700TVL
Chip	CCD	Waterproof Grade	IP67
Alarming Distance	Other	Audio	Optional
Parking Guideline	on /off	Mirror/ Non Mirror	Switchable
Video Color	Full Color	Warranty	1 Year
Package	Inner Box or Bulk Bag	OEM	Acceptable
IR LED	18pcs	Trademark	Kingland
Transport Package	Carton	Material	Alloy
Origin	China	HS Code	8525801390

Feature:
1. 1/3" Sony CCD 700TVL High-definition Video Quality
2. 120 degree wide viewing angle
3. IP67 Waterproof and Weatherproof
4. 18PCS Φ5mm IR LED, provide good vision at night
5. DC 9-36V Wide Voltage Compatible, better protect the camera and prolong life.
6. Support :PAL/NTSC Video system Applicable to variety of Vehicles: Car, Bus,Truck, RV, Mini-van etc.

Specification:

Image Sensor	1/3" Sony CCD
Number of Pixels	NTSC: 768(H)x494(V) & PAL:752(H)x582(V)
System of Signal	PAL/NTSC
Horizontal Resolution	700 TV Lines
Minimum Illumination	0Lux / F 1.2
Lens	2.8mm
Infrared	18 (Φ5mm) LED
Auto Electronic Shutter	1/60 ~ 1/100,000sec
White Balance	Auto
S/N Ratio	>0.48db
Gamma Correction	>0.45
Operation Temperature	-20C,+50C
Sync System	Internal
Video Output	1.2Vp-p/75 Ohm
Power Source Supply	DC12V-24V , 300mA
Backlight compensation	ON/OFF (Optional)
LUX	0
Auto Iris	A.E.S
Audio	Optional
Conector	4 Pins Aviation Conector (RCA Connector Optional)
Weight	250g
