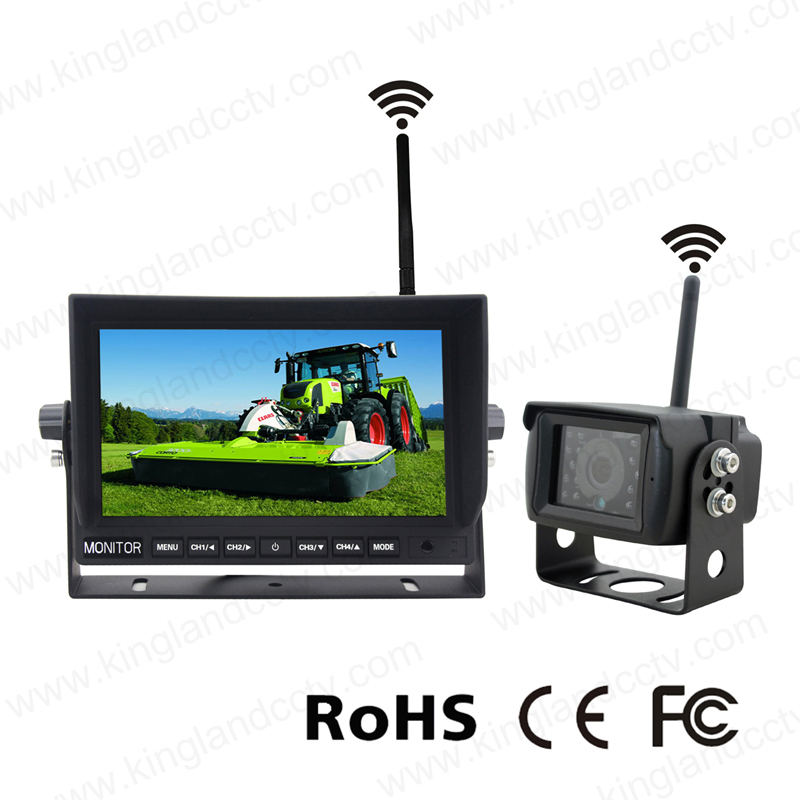

7 inch Digital Wireless Car Rear View System (KL-SW7011C)

1 way Wireless Rear View System(1 monitor+1 camera）

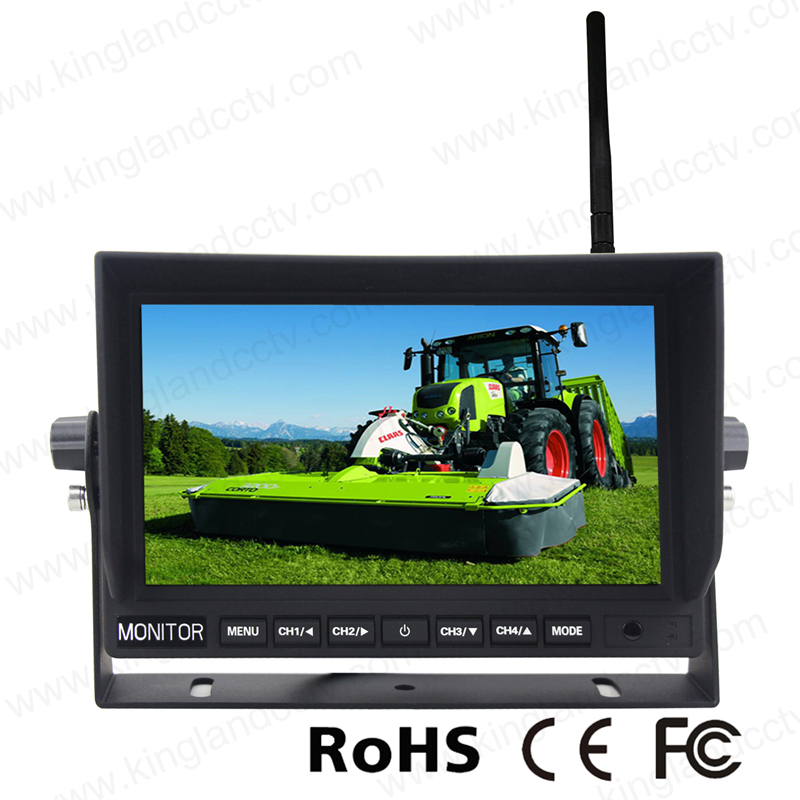

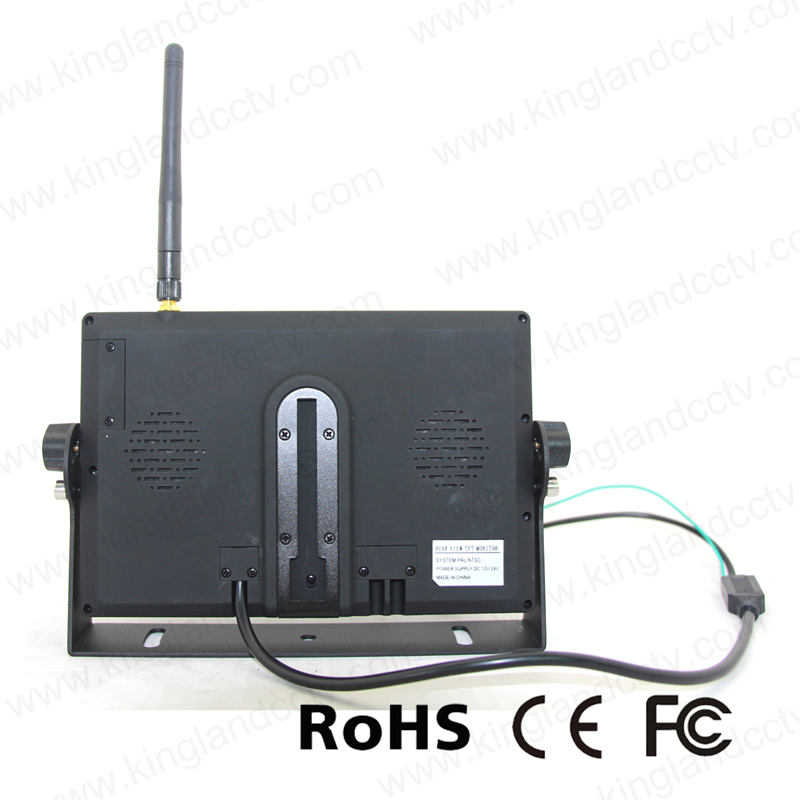

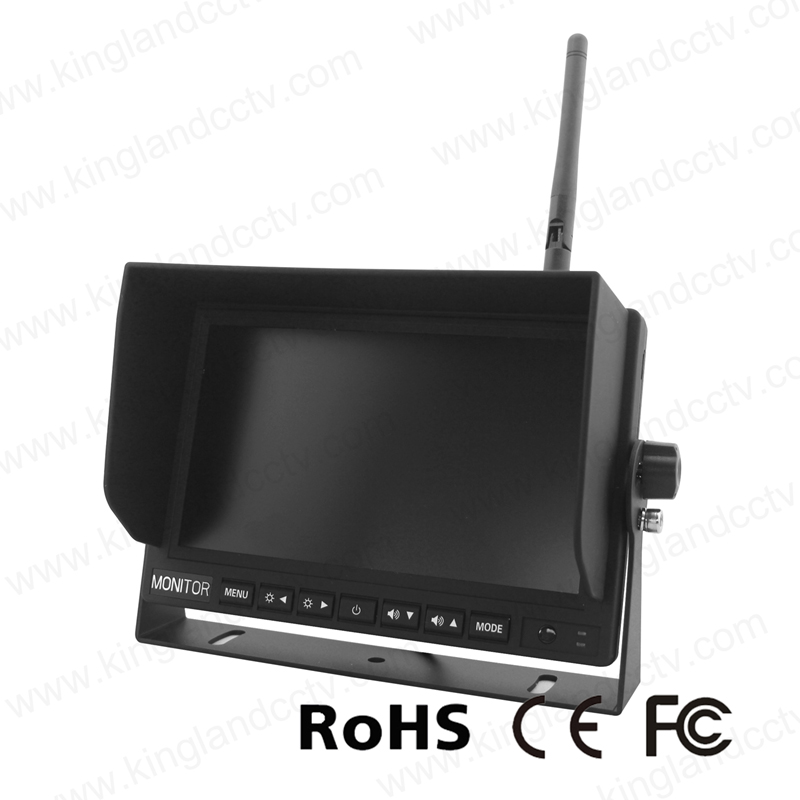

Monitor Technical specifications

7 Inch Digital Panel A+

Screen Ratio: 16：9

Back Light Luminance: LED, 300cd/㎡

Resolution: 800xRGBx480

1 way 2.4G wireless video signal input

PAL/NTSC automatically

Adopt digital wireless encryption technology to code connection

Have strong anti-interference capacity

Anti-knock level: 4G

2.4G open distance can reach 100M

Power Supply: DC12-24V

Power Consumption: 5W

Size: 180 x121 x 24mm

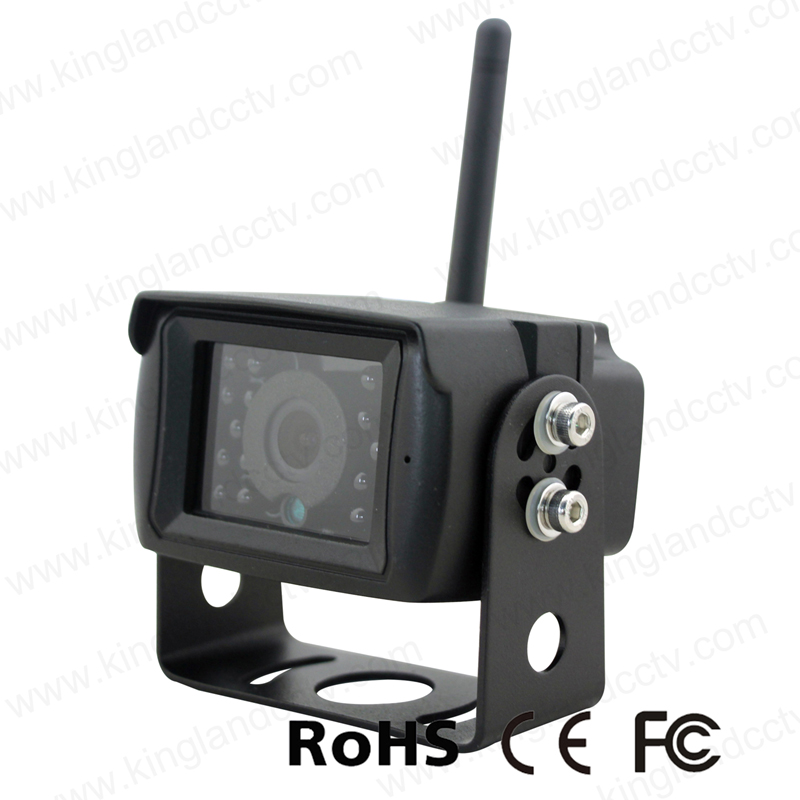

Wireless Camera Specification

Image sensor: CMOS

Resolution: 420 TV line

Mini illumination: 0.1 Lux, infrared night vision

Image View angle:150°

System: PAL& NTSC

2.4G wireless transmitter: The distance can reach 100M in the open area

Power supply:12V-24V

Waterproof level: IP 68

Power Consumption:3W
