4CH 7 inch Car Rear View System with Quad Monitor(KL-S7114)

4CH 7 inch Car Rear View System with Quad Monitor(KL-S7114)

1) 7 Inch Quad Monitor System
2) RCA or 4 PIN Connector Optional
3) 4PCS High Quality Camera

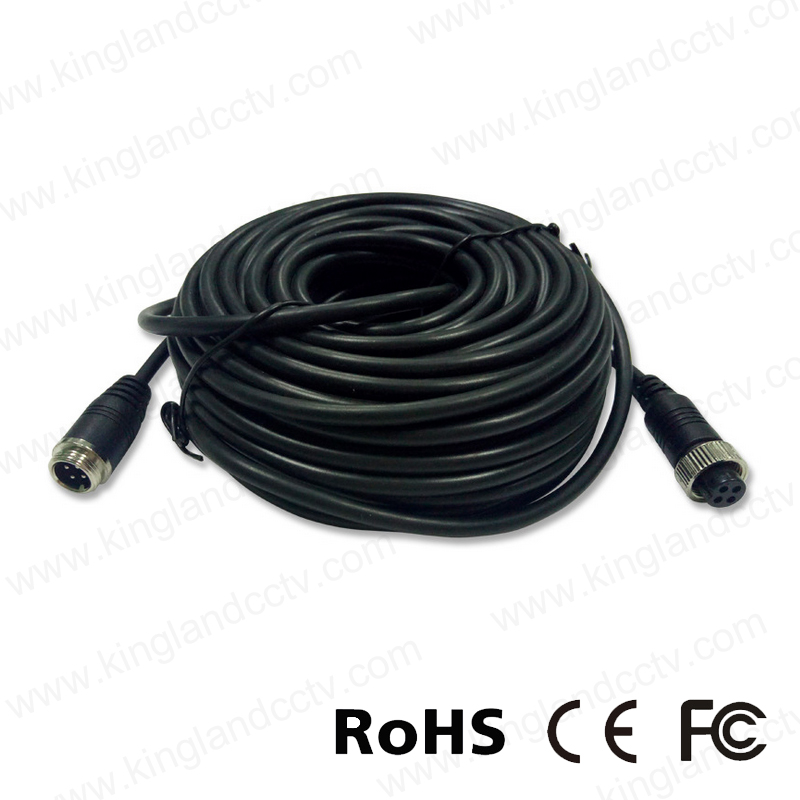

4) 5/10/15/20/25 Meter Extension Cable optional
Product description: 4CH 7 inch Car Rear View System with Quad Monitor
INQUIRY

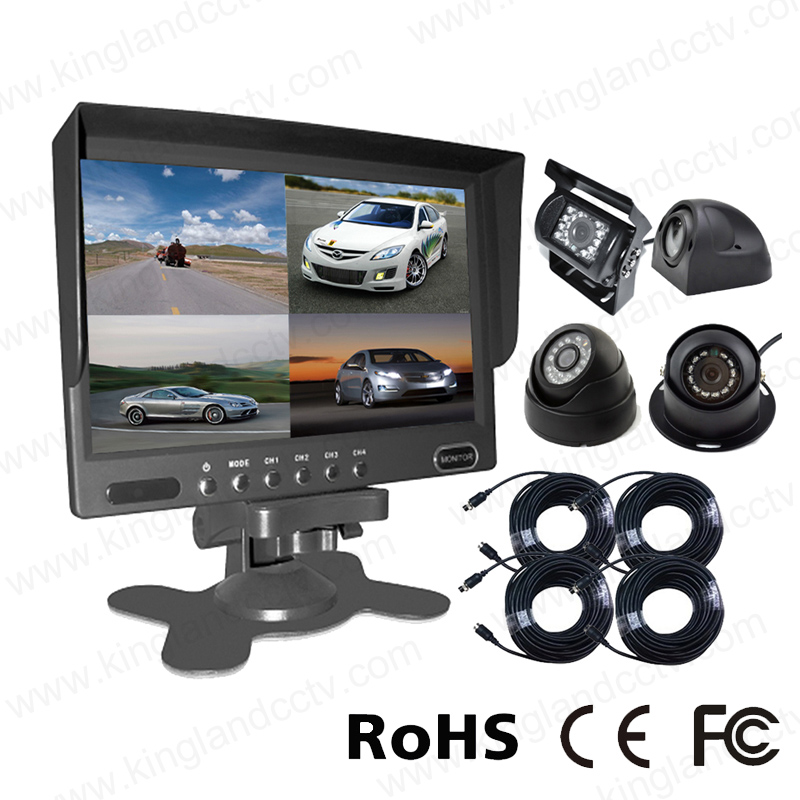

4CH 7 inch Car Rear View System with Quad Monitor (1 quad monitor + 4 cameras)

Features:

1) 7 Inch Quad Monitor System
2) RCA or 4 PIN Connector Optional
3) 4PCS High Quality Camera
4) 5/10/15/20/25 Meter Extension Cable optional

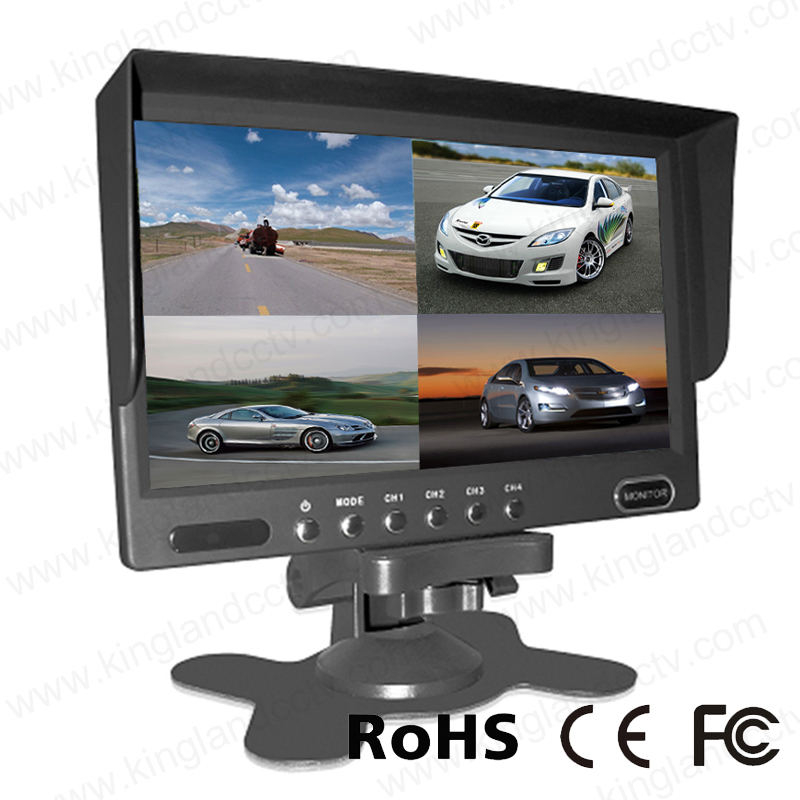

Specification of LCD Monitor:

Screen Ratio	16:9
Back Light Luminance	LED, 300cd/㎡
Resolution	1024xRGBx600
Compatible system	NTSC & PAL (automatically)
OSD control	Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
View angle	Hor. L(70) R(70) Ver. UP(50) DOWN(70)
Image reversion	UP/Down and Left/Right
Power requirement	9-45V DC
Power consumption	7W
Storage temperature	-30℃ to 80℃
Working temperature	-20℃ to 70℃
Size	172x115x24 mm
Exterior color	Black rubber oil
AV Inputs	4 way video input， 1 way audio input(Optional）
Number of Trigger and display	4 triggers
MontiorAndCameraConnector	RCA/ 4pin connector (Optional)
Other features	4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor
Accessories	Remote controller, Power supply cable , User manual, Bracket

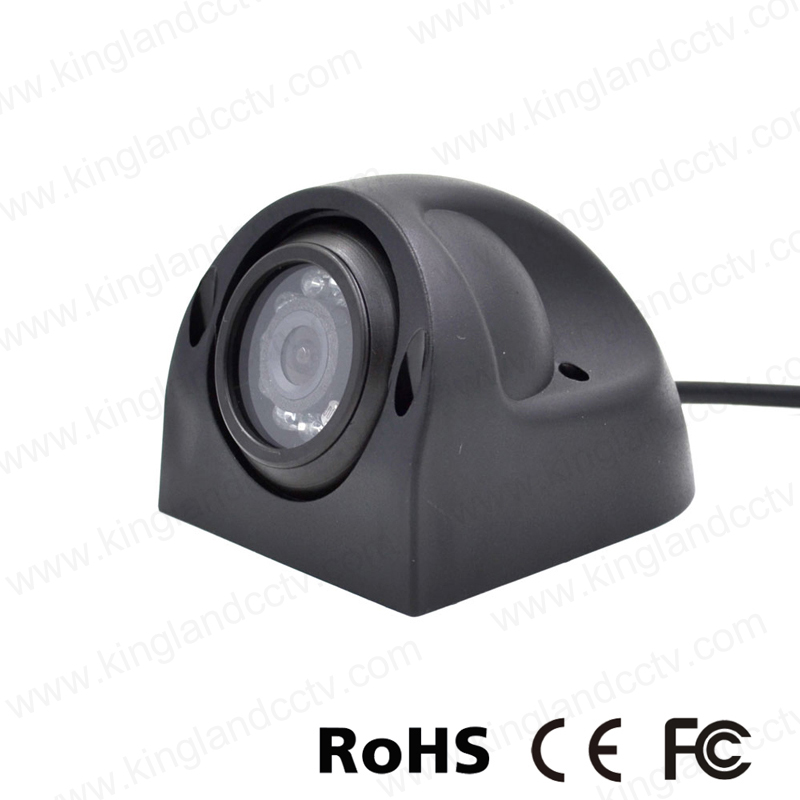

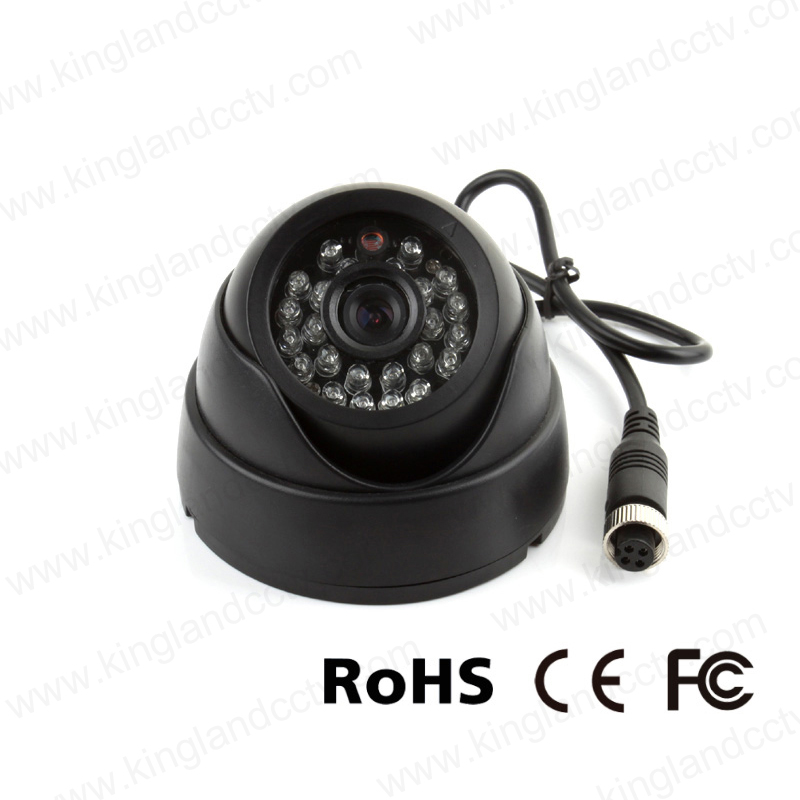

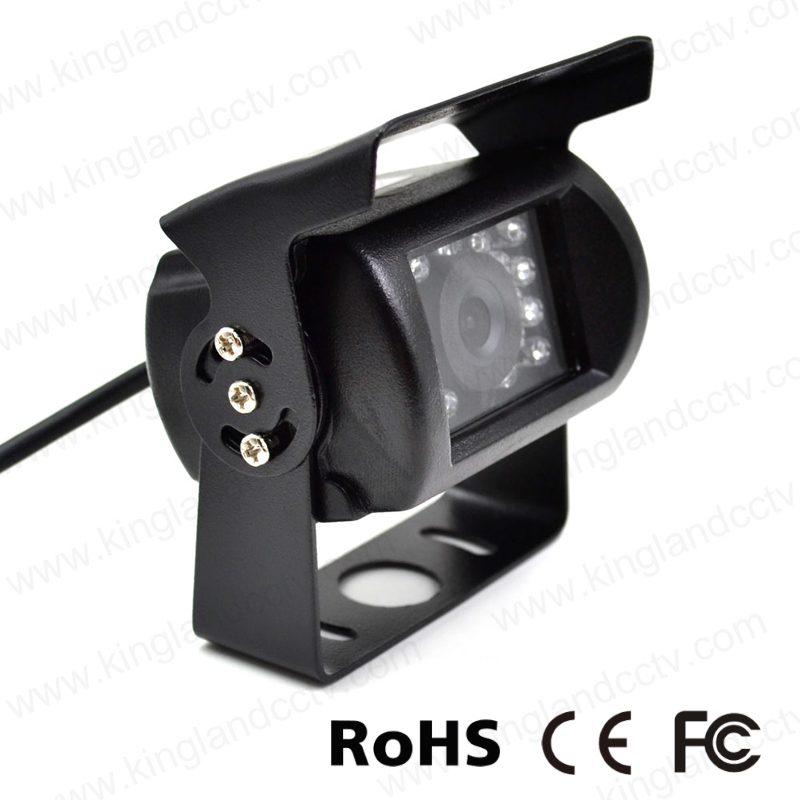

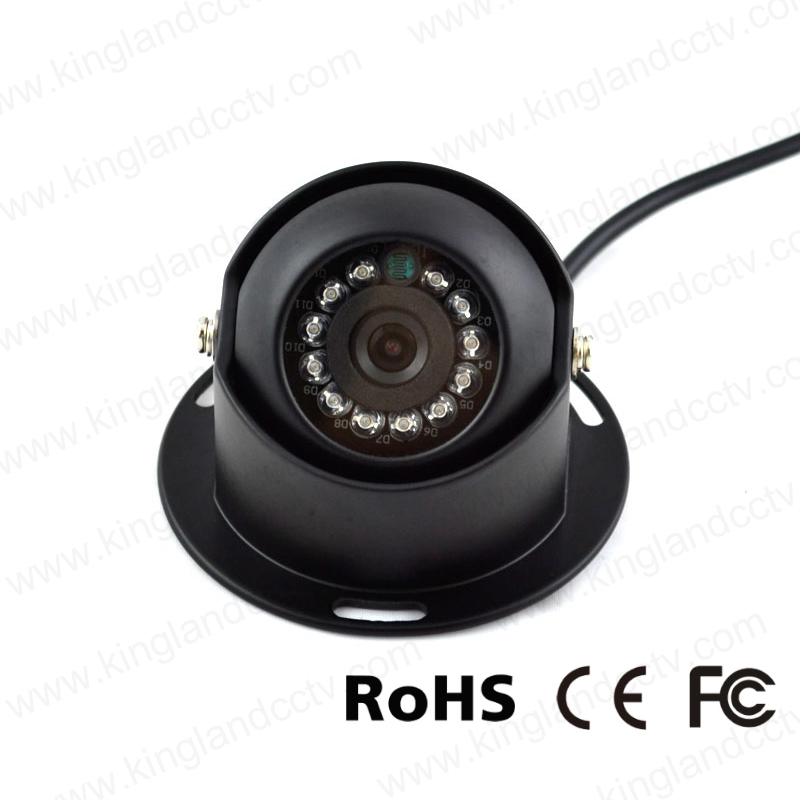

Specification of Camera:

Image Device:1/3 or 1/4 Sharp or Sony CCD

TV System:PAL/NTSC
Effective Pixels:500x582 pixels/510x492 pixels
Sensing Area:5.961mmx4.276mm
Scanning System:2:1 Interlace
Sync. System:Internal
Resolution:420TV lines
Minimum Illumination:0 Lux (18 PCS IR LEDS ON)
Video Output:1.0vp-p, 75Ohm
Gamma Consumption:0.45
AGC:Auto
S/N Ratio:≥48dB
White Balance:Auto
Electronic Shutter:1/50Sec-12.5μSec (PAL) / 1/60Sec-12μSec (NTSC)
BLC:Auto
Current Consumption:Max.50 mA
Power Supply:DC12V
Operating Temperature:-20°c~+70°c
