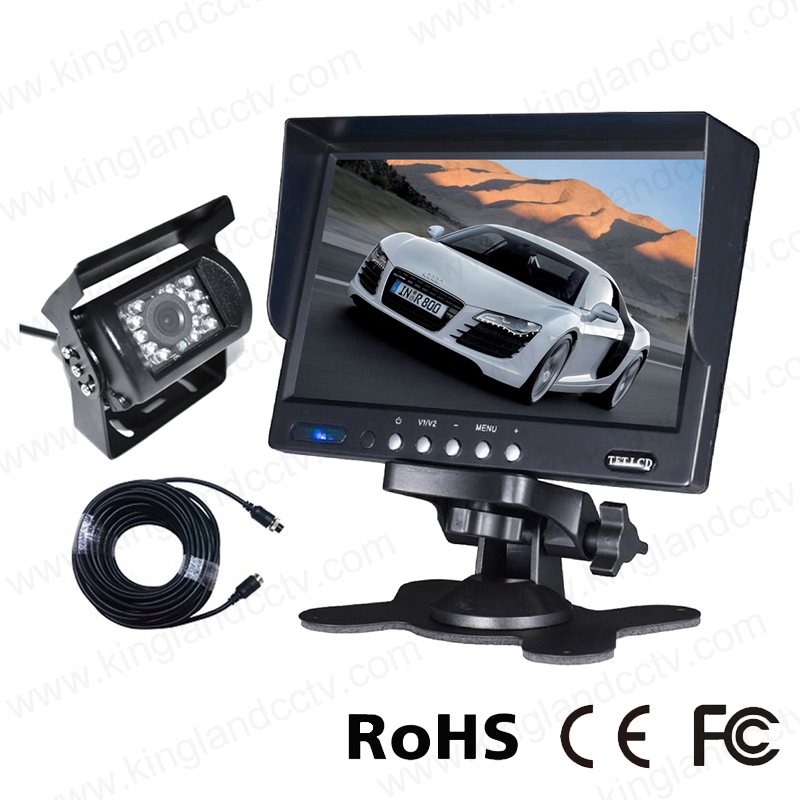

7 Inch TFT LCD Display Car Rear View Monitor System (KL-S7111)

7 Inch TFT LCD Display Car Rear View Monitor System

Features:

1) 7 Inch Car Monitor System
2) RCA or 4 PIN Connector
3) Waterproof IR Night Vision CCD Camera

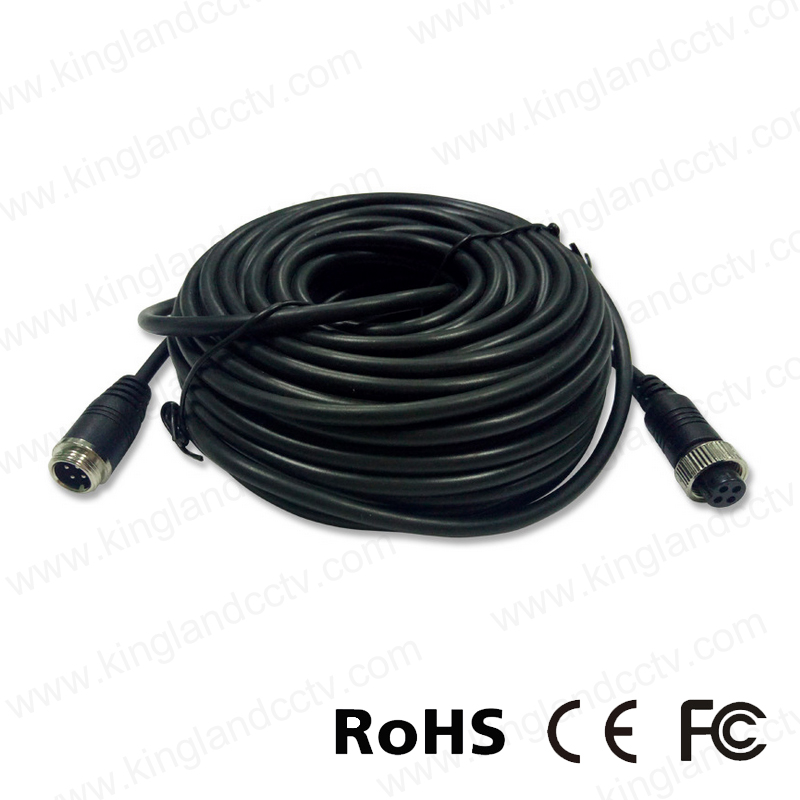

4) 5/10/15/20/25 Meter Cable

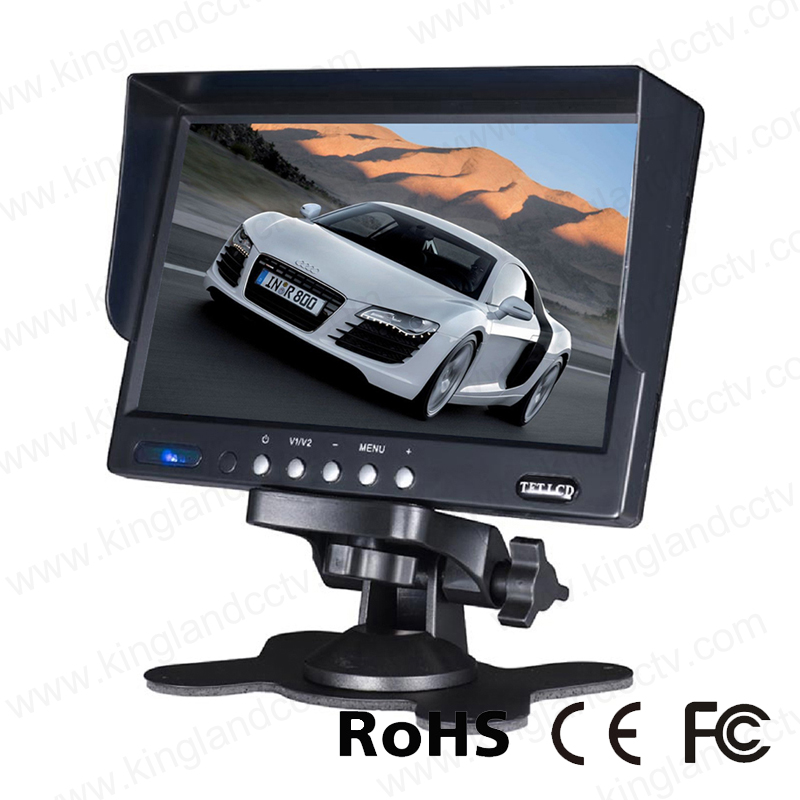

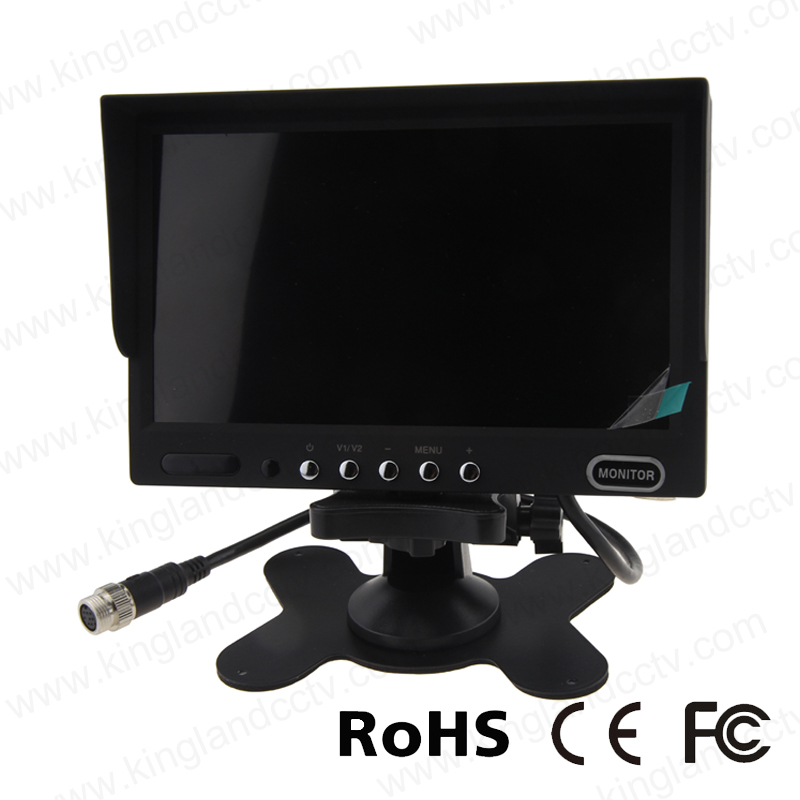

Specification of LCD:

-   screen size:7 inch (diagonal length)
-   Brand new panel,high resolution
-   [16 : 9 ] wide screen display
-   2 ways video & audio inputs
-   PAL & NTSC auto-switching
-   Resolution:1440 x R.G.B x 234 dots
-   Power supply: DC 12 V/24V compatible
-   Built in speaker
-   Remote control, OSD menu;
-   RCA A/V connector input, 4 PIN connector ( optional) for special camera.

-   View angel range:(left/right)65º (top)40º (down)15º

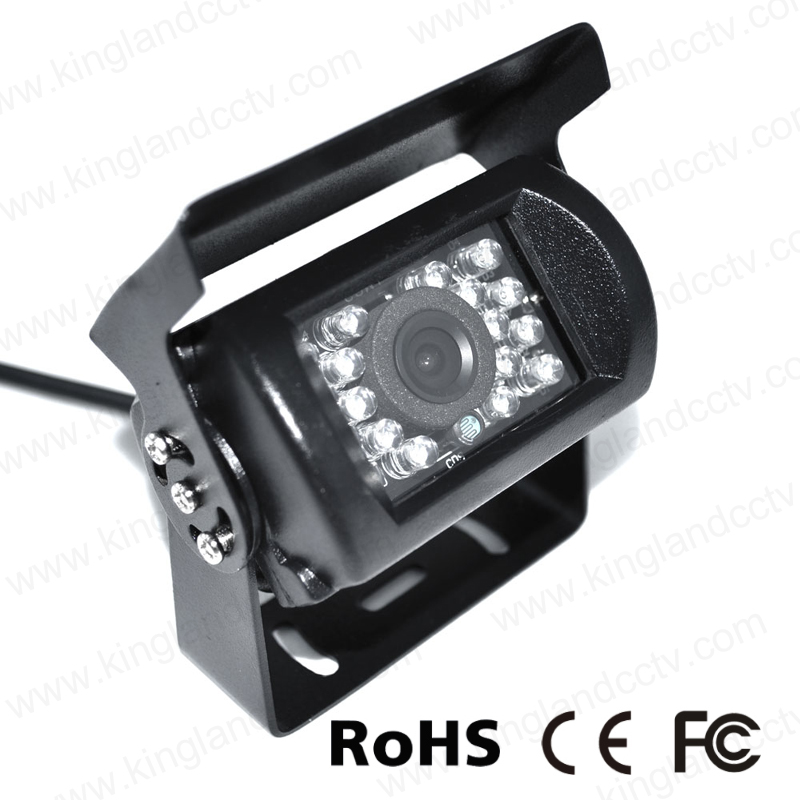

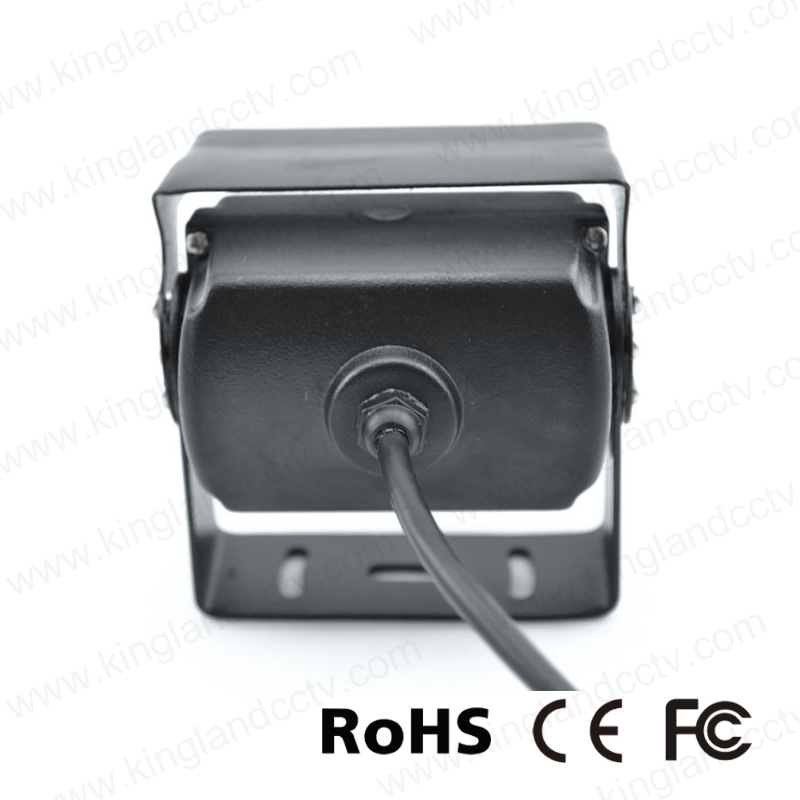

Specification of Camera:

Image Device:1/3 or 1/4 Sharp or Sony CCD

TV System:PAL/NTSC
Effective Pixels:500x582 pixels/510x492 pixels
Sensing Area:5.961mmx4.276mm
Scanning System:2:1 Interlace
Sync. System:Internal
Resolution:420TV lines
Minimum Illumination:0 Lux (18 PCS IR LEDS ON)
Video Output:1.0vp-p, 75Ohm
Gamma Consumption:0.45
AGC:Auto
S/N Ratio:≥48dB
White Balance:Auto
Electronic Shutter:1/50Sec-12.5μSec (PAL) / 1/60Sec-12μSec (NTSC)
BLC:Auto
Current Consumption:Max.50 mA
Power Supply:DC12V
Operating Temperature:-20°c~+70°c

Max Storage Temperature:-40°c~+80°c
Lens:2.8 or 2.5 mm lens
Lens Angle:120°(N),120°(P)
