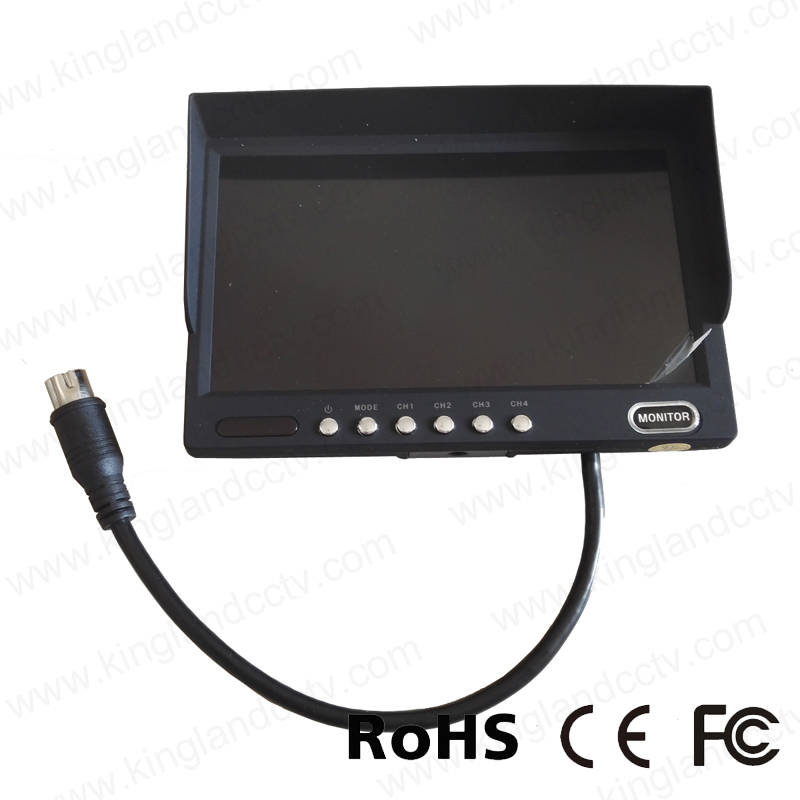

7 inch LCD TFT Screen Rear View Quad Monitor
Specifications:
|
Model number |
KL-CM711Q |
|
Screen Ratio |
16:9 |
|
Back Light Luminance |
LED, 300cd/m2 |
|
Resolution |
800xRGBx480 |
|
Compatible system |
NTSC & PAL (automatically) |
|
OSD control |
Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify
Chinese)
|
|
View angle |
Hor. L(60) R(60) Ver. UP(40) DOWN(60) |
|
Image reversion |
UP/Down and Left/Right |
|
Power requirement |
DC 12-24V |
|
Power consumption |
5W |
|
Storage temperature |
-30 ~ 80ºC |
|
Working temperature |
-20ºC to 70ºC |
|
Size |
172x115x22mm |
|
Weight |
680g |
|
Key color |
Silvery color |
|
AV Inputs |
4 way video input |
|
Number of Trigger and display |
4 trigger |
|
Optional functions |
4 PIN connector |
|
Other features |
OSD menu, Remoter control, Sunshade design around, Built-in speaker |
|

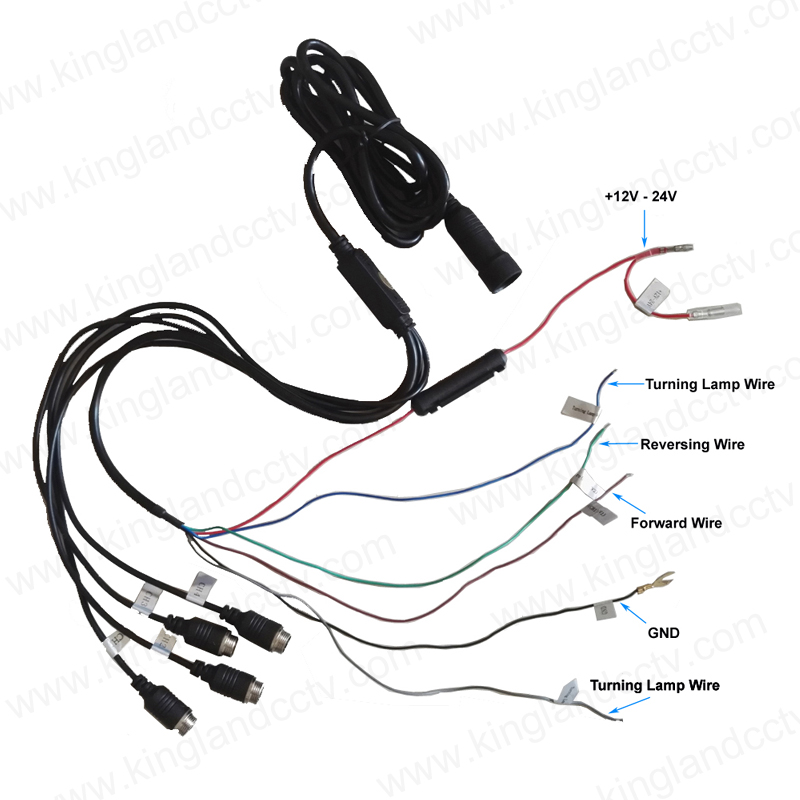

Accessories |

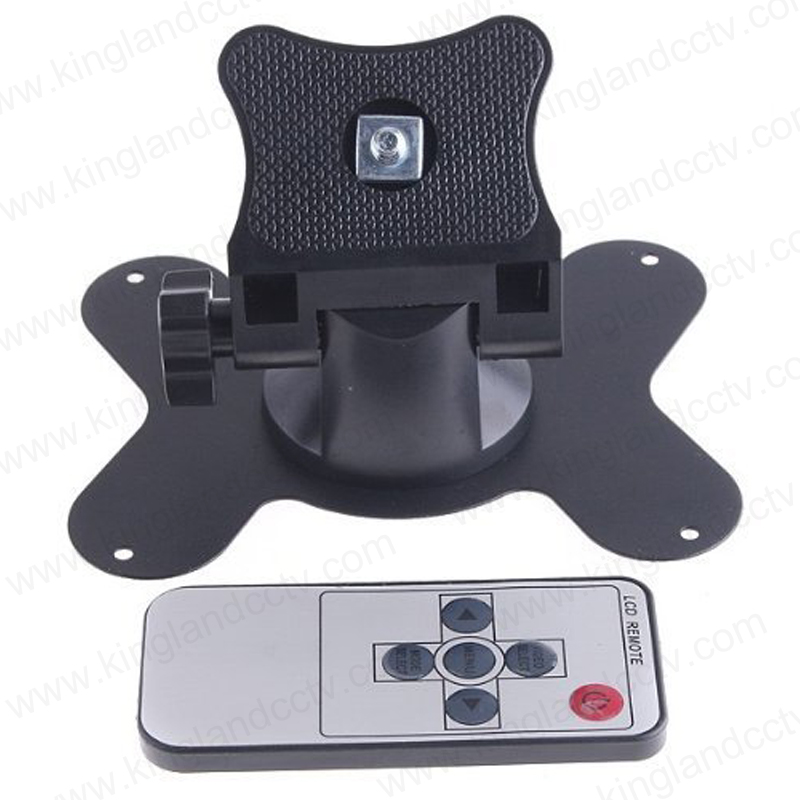

Remote controller, Power supply cable , User manual, Bracket, Connector conversion line |
|
Package |
10PCS/CTN NW: 8.6KGS GW: 9.4KGS CTN Size: 547*360*216mm |
