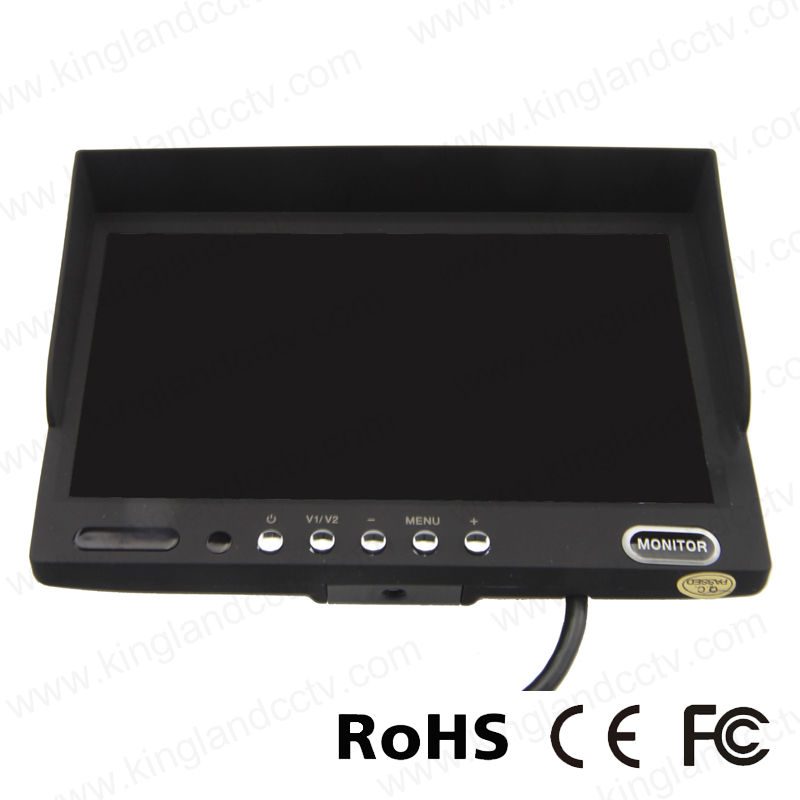

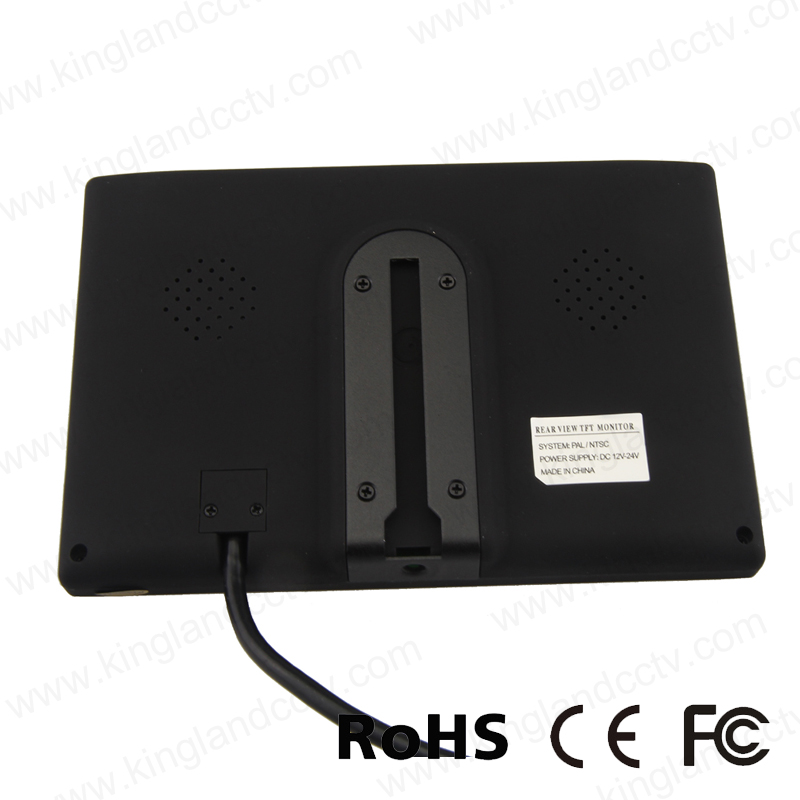

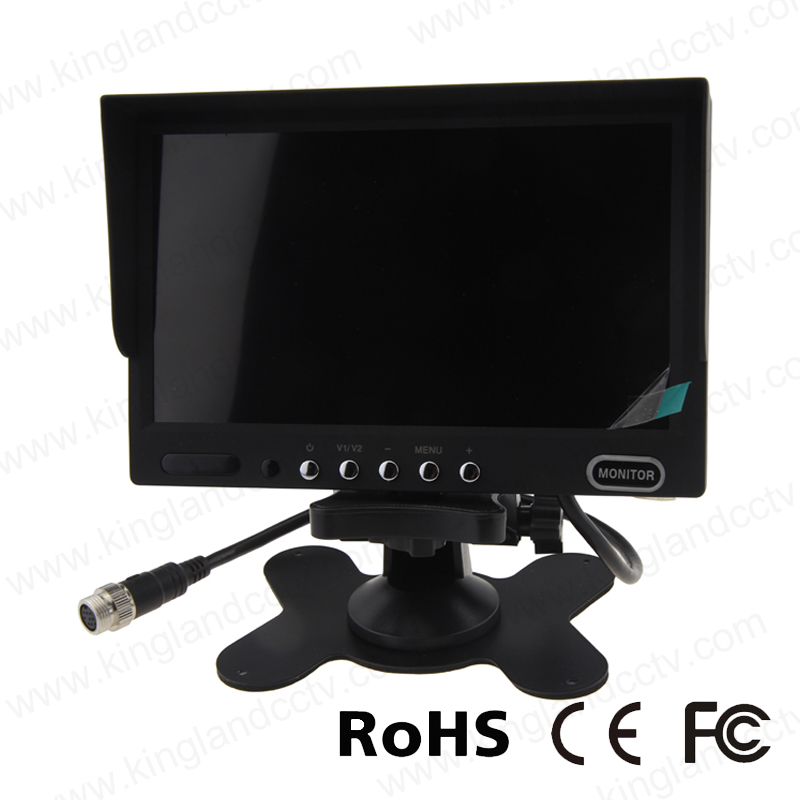

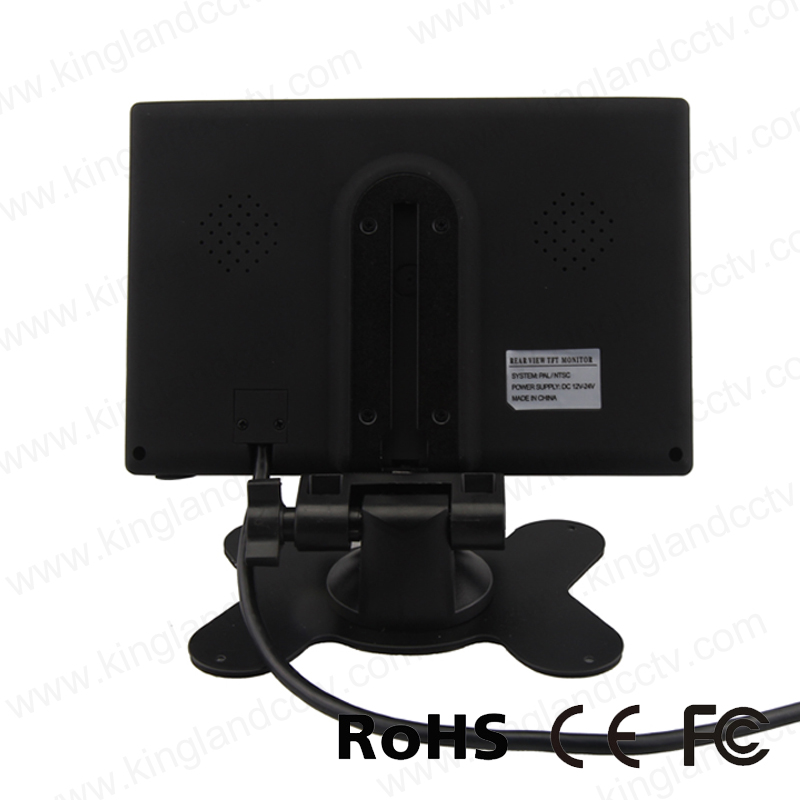

7" TFT LCD Reversing Backup Monitor with 2 AV

KL-M711

Screen Ratio

16:9

Back Light Luminance

LED, 300cd/㎡

Resolution

800xRGBx480

Compatible system

NTSC & PAL (automatically)

OSD control

Color, Brightness, Contrast, Volume, Language

(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

View angle

Hor. L(60) R(60)   Ver. UP(40) DOWN(60)

Image reversion

UP/Down and Left/Right

Power requirement

12V DC (12-24V DC optional)

Power consumption

5W

Storage temperature

-30〜80℃

Working temperature

-20℃ to 70℃

Size

172x115x22 mm

Weight

312g

Key color

Silvery color

AV Inputs

2 way video input

Number of Trigger and display

1 trigger

Optional functions

4 PIN connector

Other features

OSD menu, Remoter control, Sunshade design around, Built-in speaker

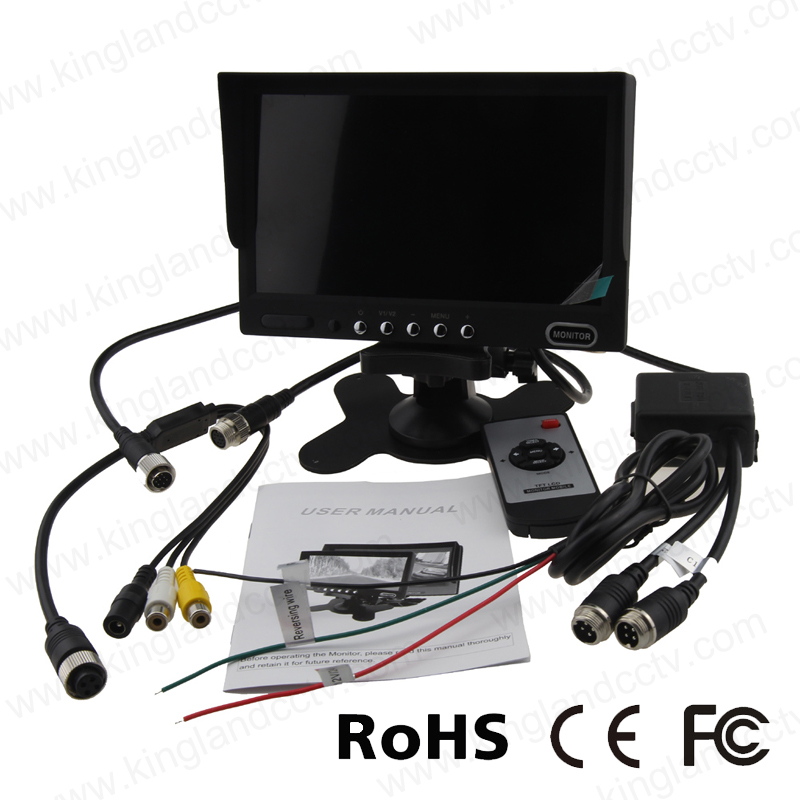

Accessories

Remote controller, Power supply cable , User manual, Bracket, Connector conversion line

Package

10pcs/box   net weight:8.6KGS  gross weight:9.4KGS  M: 54.7*36*21.6cm
